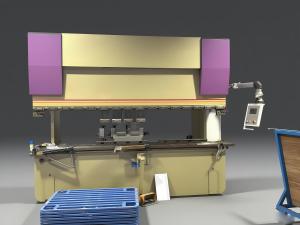

Bowl Water - Line Precision Bending Machine
The STAR POWER Bowl Water - Line Precision Bending Machine is a high - performance equipment engineered for the specialized bending process of bowl water - line components. It integrates advanced control technology and robust mechanical design.
Equipped with the distinctive “STAR POWER” branding, this bending machine boasts a precision - tuned bending mechanism. The high - rigidity frame ensures stable operation during the bending of bowl water - line materials, which can range from stainless steel to special - formulated plastics for water - related applications. The intuitive control panel allows operators to set and adjust bending angles, lengths, and sequences with ease, enabling consistent production of bowl water - line parts that meet strict dimensional and shape tolerances.
Whether used in small - batch customization or large - scale mass production of bowl water - line products, it can adapt to different material thicknesses and complex bending requirements. Safety features such as emergency stop buttons and protective covers are also incorporated to safeguard operators during the bending process. It is an ideal solution for manufacturers aiming to enhance the quality and efficiency of bowl water - line component production.
Specifications:
| Process term | Process introduction | machine | Machine size | floor space | power
(Kw) |
| Length(m) | Width(m) |
| Process 1 | Steel Coil Laser cutting | Laser cutter line | 12000x2600x1950mm | 17 | 2.6 | 45 |
| Process 2 | Sheet welding for Saving Material | Straight Seam Welding Machine | 1400x1100x2000mm | 1.4 | 1.1 | 0.4 |
| Process 3 | Sheet Grinding for Saving Material | Sheet Grinding Machine | 2250x1550x1800mm | 2.3 | 1.6 | 3.2 |
| Process 4 | Punching of water hole | Deep throat Press machine/J21S-40T | 1500x1200x2000mm | 1.5 | 1.2 | 4 |
| Process 5 | Punching for Prebending | Deep throat press machine/J21S-63T | 1700x1400x2200mm | 1.7 | 1.4 | 4 |
| Process 6 | Press the water line | Bending machine/30T-1600MM | 2600x1400x2000mm | 2.6 | 1.4 | 3 |
| Process 7 | Bending of the sink base | Bending machine/63T-2500MM | 2800X1700X2350MM | 2.8 | 1.7 | 5.5 |
| Process 8 | Press arc & bottom corner | Two-In-One Integrated Rolling Seam&Corner Pressing Machine | 1300x750x2000mm | 1.3 | 0.75 | 2.3 |
| Process 9 | Welding for vertical seams and bottom corner | CNC Welding Special Machine | 1400x1100x2000mm | 1.4 | 1.1 | 0.4 |
| Process 10 | Round corner Of vertical seams grinding (Inside) | Grinding Machine For Round corner Of vertical seams | 2550x850x2200mm | 2.6 | 0.85 | 2.3 |
| Process 11 | Repair the Panel's missing corners | CNC Welding Special Machine(for panel repair) | 1100x850x1450mm | 1.1 | 0.85 | 0.4 |
| Process 12 | CNC Welding For Panel's Inner Edge | Multi-Axis CNC Welding Special Machine
(For panel's inner edge) | 1700x1400x1600mm | 1.7 | 1.4 | 1.3 |
| Process 13 | Grinding for the sink's panel | Grinding machine (Abrasive belt type) | 2500x1400x1700mm | 2.5 | 1.4 | 3 |
| Process 14 | Grinding for the sink's panel(mirror surface) | Grinding machine | 3000x1400x1700mm | 3 | 1.4 | 3 |
| Process 15 | Painting For Sink Bottom Back Side | Manual painting equipment | 2200X1800X1600mm | 2.2 | 1.8 | 4.5 |
| Process 16 | Drying after Painting | Drying Oven | 13000X1000X1600mm | 13 | 1 | 30 |
| Total floor space(Includ spaced distance and transportation route):>65m(Length)x 10m(Width) |
| Process flow | Equipment name | Specific machine name |
| Cutting | Laser cutting | Customizable |
| Seam and corner pressing | Seam and corner pressing machine | Seam pressing machine, Corner pressing machine, Integrated seam and corner pressing machine |
| Stamping | Stamping machine | Punching of water hole,Punching of Prebending |
| Bending | Bending machine | Bending to form the bowl shape, Press the water line |
| Welding | Welding machine | CNC fillet welding machine, CNC corner mending welding machine, seam welding machine, CNC planar welding machine, Press arc & bottom corner, |
| Grinding and polishing | Grinding and polishing machine | Automatic Grinding for the sink's panel(Rough Polishing),Automatic Grinding for the sink's panel(Fine Polishing), Round corner Of vertical seams grinding (Inside) |
Advantages:
Company Introduction Founded in 2022, Foshan Star Power Technology Co., Ltd. is located in Foshan, a city renowned for its pottery and martial arts. With a registered capital of 5 million yuan, our company focuses on a wide range of businesses, including information system integration, machinery and metal product sales, and import-export services. In the field of sink production lines, we offer advanced solutions. Our equipment combines high-precision CNC technology with efficient production processes. We are committed to providing customers with complete sets of sink production line equipment, which can achieve operations such as laser cutting, bending, and welding. This not only ensures the high-quality manufacturing of sinks but also meets the production needs of different batch sizes, helping our clients improve production efficiency and product quality.
